Spinks Automation’s Special Purpose Machines which are Made in India offers high-precision engineering, with machines specifically designed for fine-detail pad printing and consistent alignment. With our custom automation expertise, we tailor every system to integrate according to your production needs. Our pad printing solutions are built for durability and reliability, using industrial-grade components to ensure long-term performance with minimal maintenance.

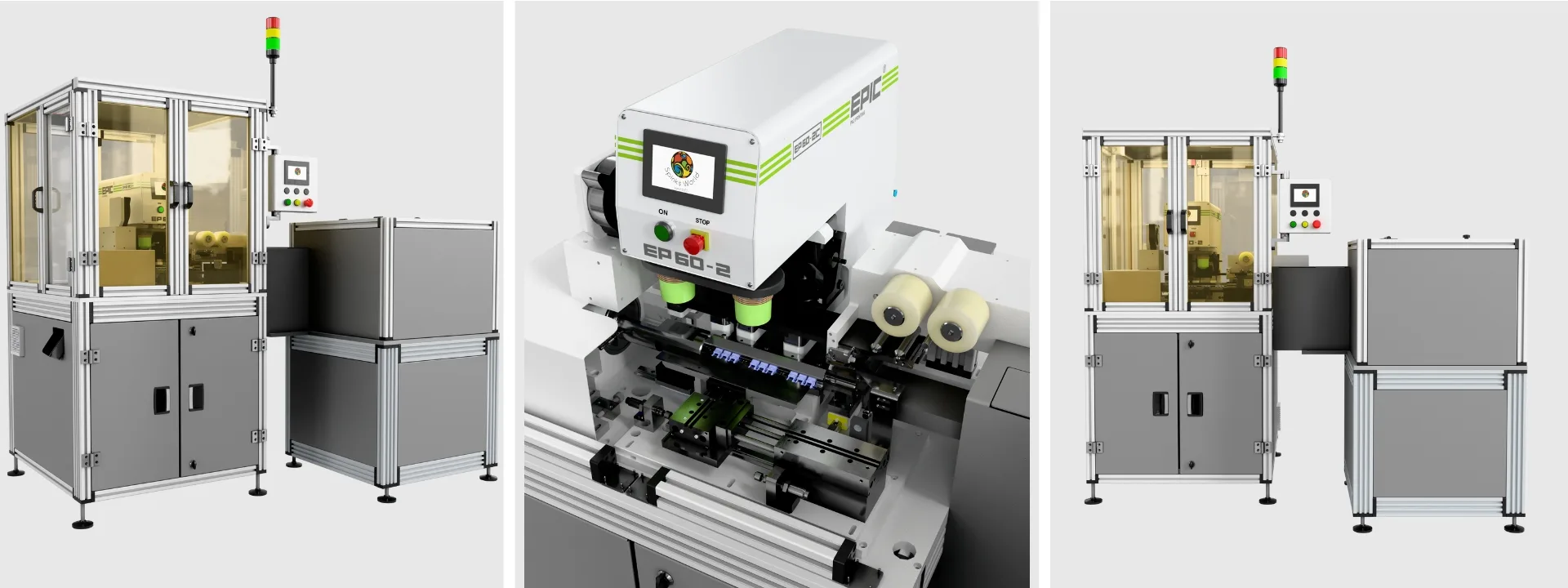

SPMs for printing on both sides of the toggle switches
SPMs for printing on both sides of the toggle switches
At Spinks Automation, we specialize in advanced EPIC pad printing automation systems and seamless machine integration, providing cutting-edge manufacturing solutions for printing on toggle switches used in electrical industry. Toggle switches are critical components in a wide range of electronic devices. Printing functional markings like “ON” and “OFF” with clarity and consistency is essential.
Dual Pad Printing Stations
Simultaneous printing on both sides of the toggle with one station dedicated to “OFF” side and the other to the “ON” side helps increases throughput without compromising print quality.
The EPIC EP 60-2 Pad Printing Machine used in this Toggle printing automation is a high-performance solution designed to meet the needs of electrical components printing like MCB switches pad printing, where precision and efficiency are critical. Engineered for superior output, this two-head machine enables simultaneous printing on two sides of toggle switches in a single pass. EPIC SPMs for electronic devices printing delivers sharp, high-precision prints, even at high volumes, and maintains consistent quality. Its minimized ink wastage and fast production cycles contribute to long-term cost-efficiency and equipped with HMI for easy control, monitoring, and diagnostics of the machine. From streamlined processes to exceptional quality assurance, the EPIC EP 60-2 pad printing machine sets a new standard in pad printing in electronic industry such as pad printing on MCB switches and printing on toggle switches used in MCBs.
Auto-Flip Mechanism
After printing the "OFF" marking at the first pad printing station, the built-in flip mechanism automatically rotates the toggle to its other side. It is then precisely printed with the "ON" marking at the second pad printing station to ensure accurate double-sided printing in a fully automated sequence.
Integrated IR Curing Unit
IR curing ensures rapid drying of ink, minimizing downtime and enabling immediate post-print handling.
Auto Tape Cleaning System
Maintains consistent print quality by automatically cleaning pads between cycles which reduces manual intervention and downtime.
Bowl Feeder for Auto Feeding
An efficient bowl feeder system aligns and feeds toggle switches into the production line automatically, supporting uninterrupted operation.
Dual-Track Controlled Feed
The dual-track linear indexer system enables parallel processing, increasing productivity and optimizing component flow throughout the machine. This special-purpose machine features an EP two-color pad printing machine with two linear indexers to ensure precision and accuracy in printing
Safety Door Interlock
Ensures operator safety by preventing machine operation when access doors are open. This SPM Combines operational safety with intuitive controls for smooth and secure machine handling.

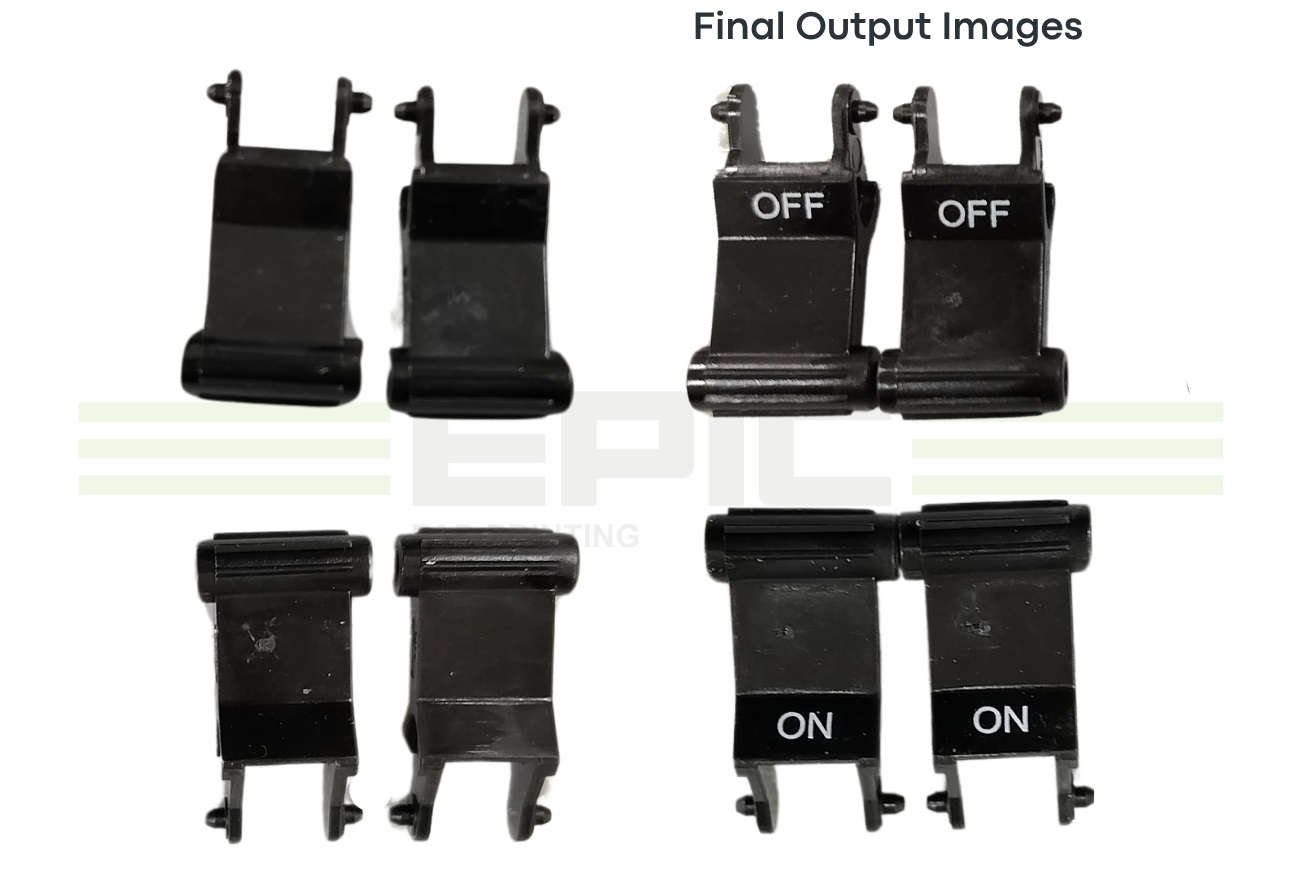

Toggle Switch Sample Image from EP 60-2 Pad Printing Automation
