EPIC Mechanical Machine
Unmatched Mechanical Stability

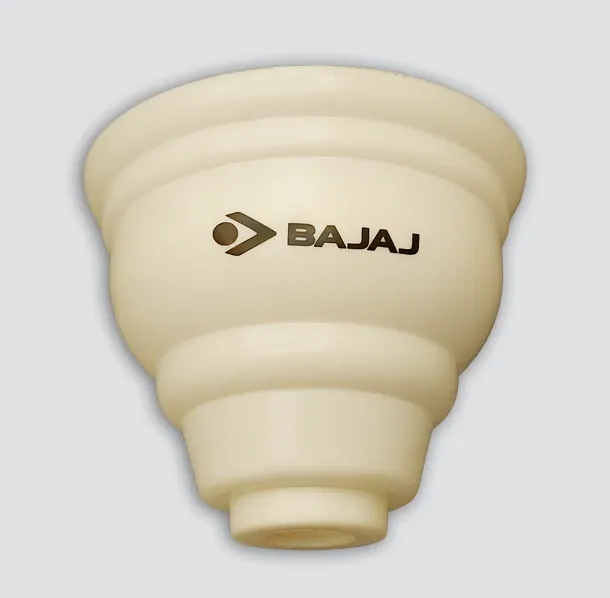

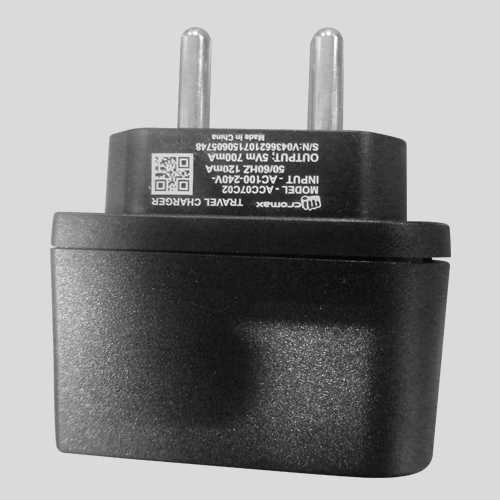

The EPIC Mechatronic cam-driven pad printer delivers unmatched precision, speed, and repeatability. It is a high-performance solution for demanding printing needs in the automotive, medical & electronics industries.Mostly used in Manless automations.
Features & Advantages
Unmatched print consistency & repeatability.
Engineered for high-output, multi-shift production.
Superior print sharpness and edge definition.
Proven mechanical reliability with minimal maintenance.
Trusted solution for mission-critical marking applications.
Tape cleaning system (Optional)
| Model | Pressure | Cycles / Hour | Ink Cup Size | Max Print Image Size |
|---|---|---|---|---|

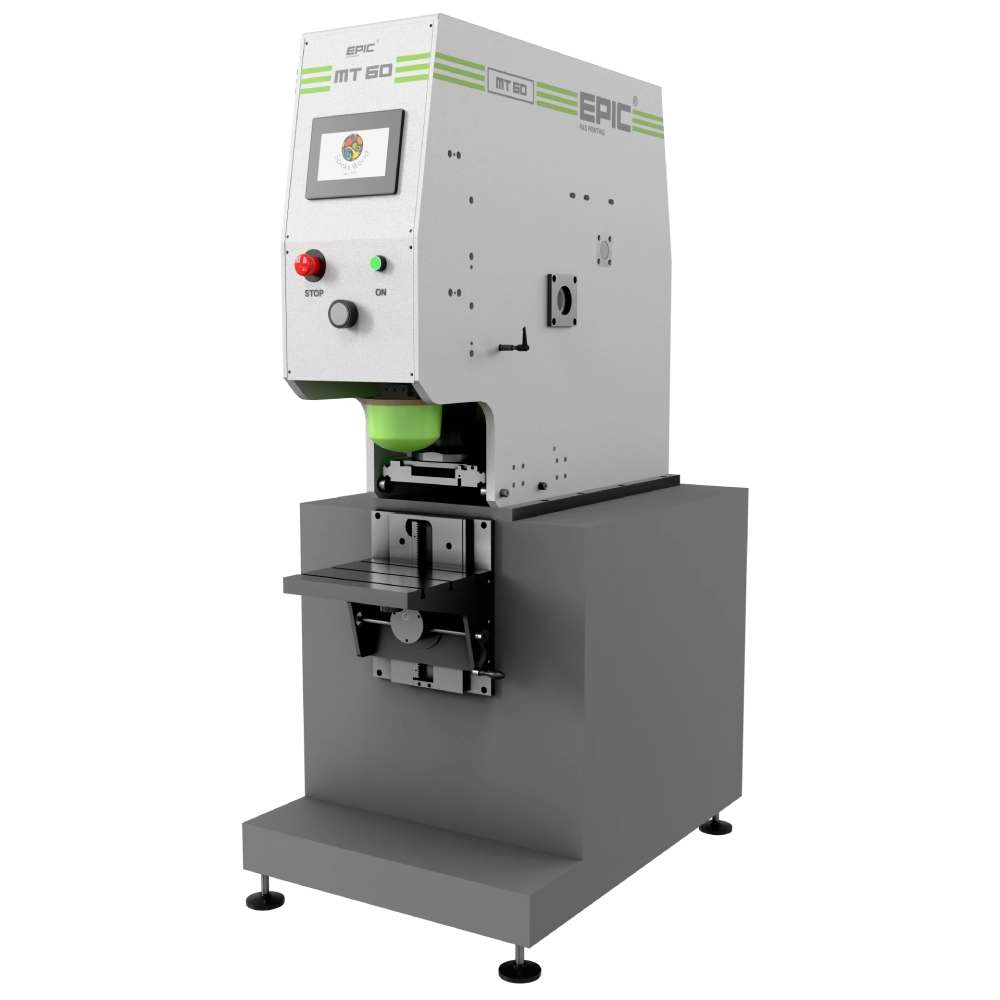

| MT-60 | 750 N | Up to 1300 – 3800 | Ø60 mm | Ø55 mm (38 × 38 mm) |

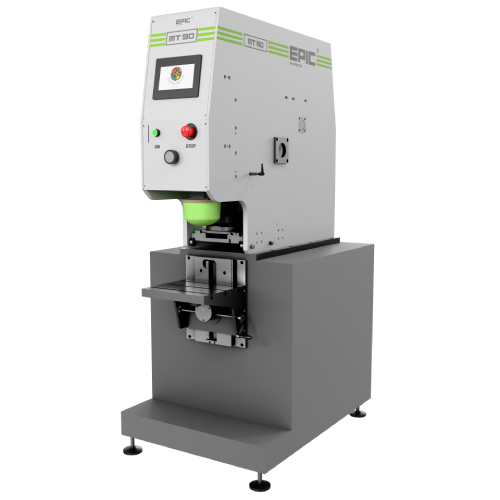

| MT-90 | 1200 N | Up to 1000 – 3500 | Ø90 mm | Ø85 mm (60 × 60 mm) |

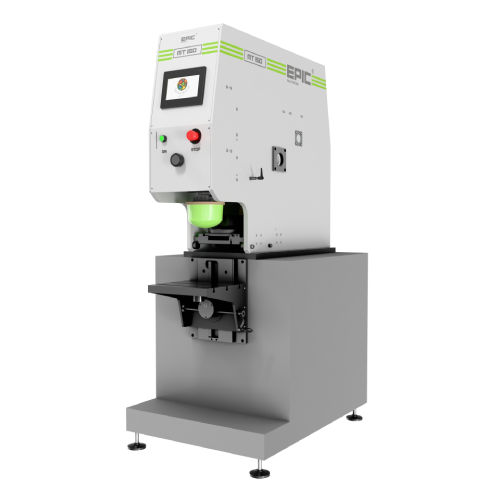

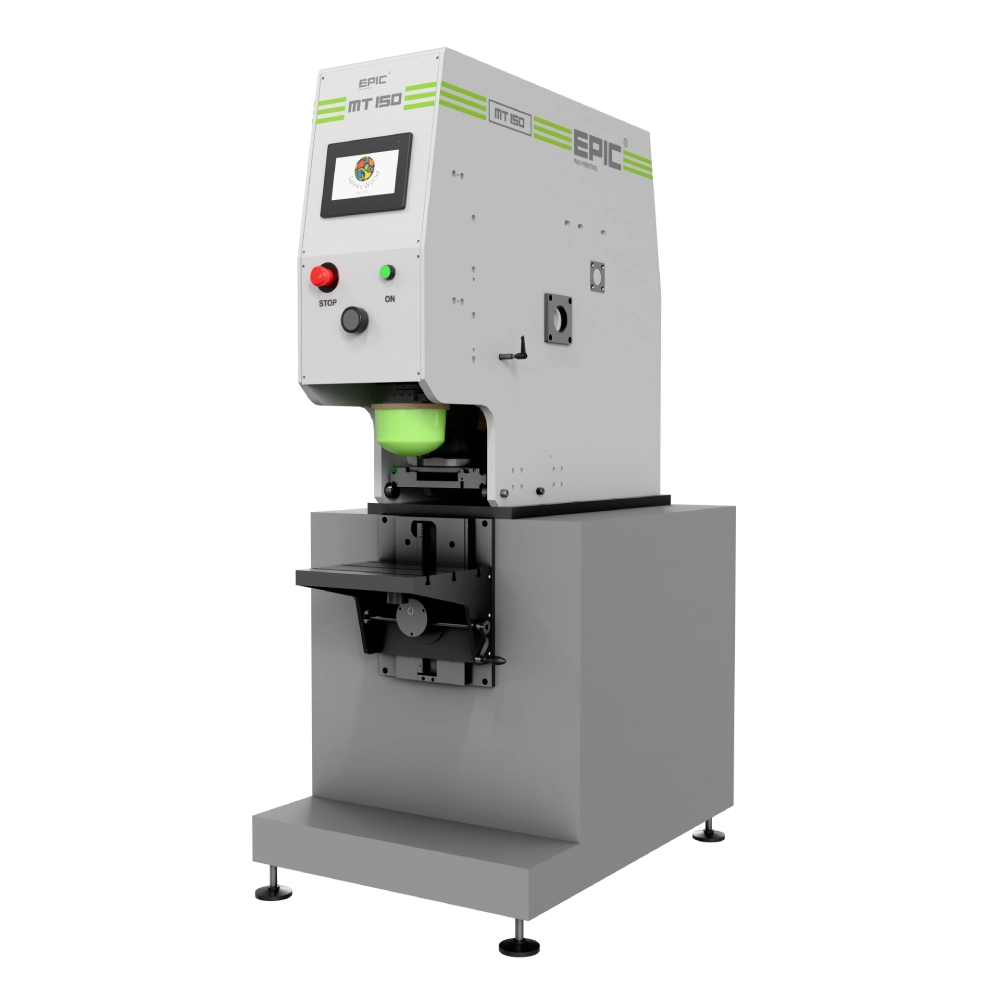

| MT-150 | 2500 N | Up to 800 – 2200 | Ø150 mm | Ø145 mm (100 × 100 mm) |

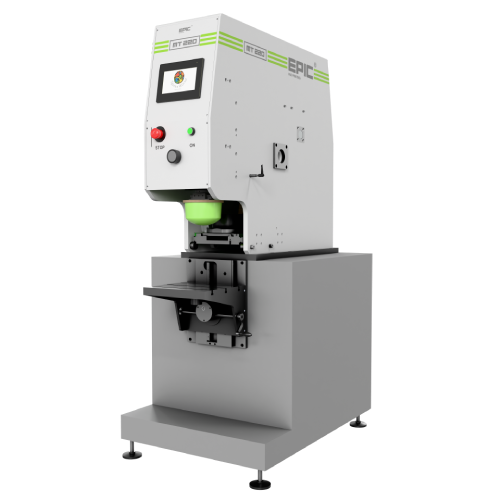

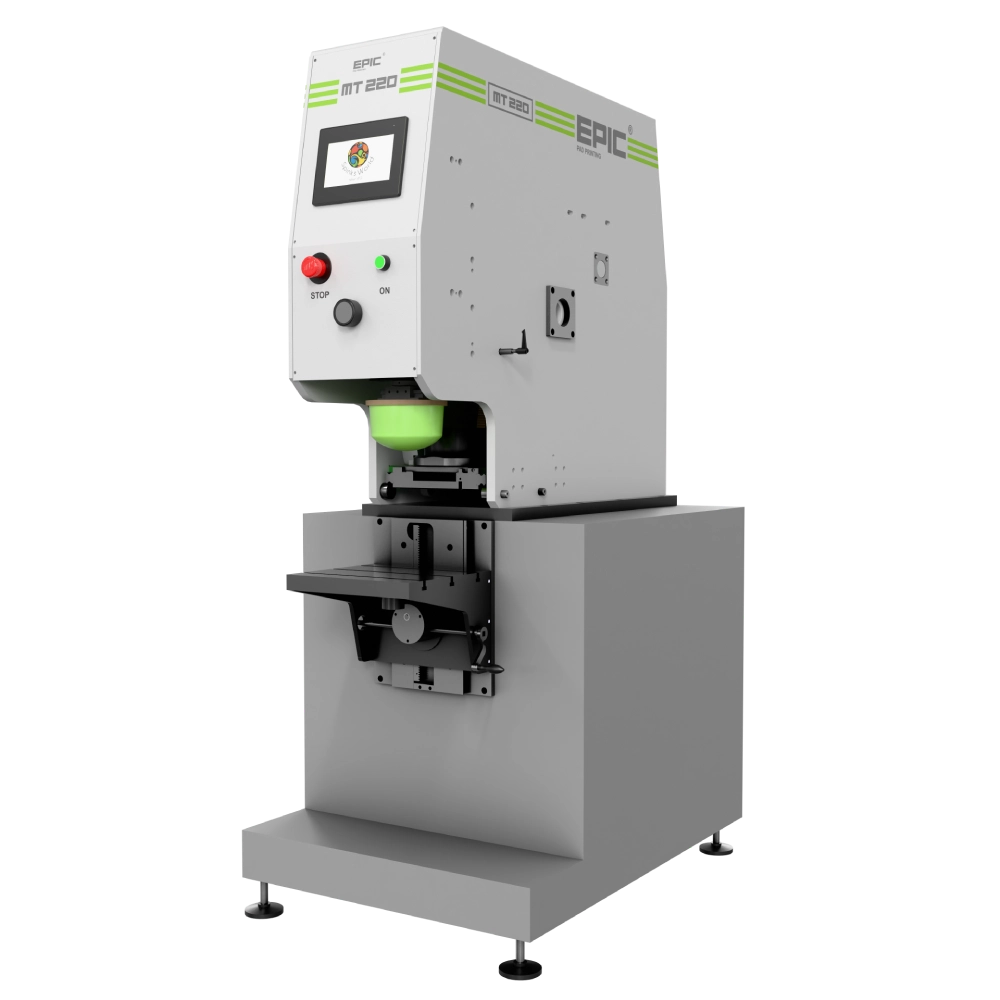

| MT-220 | 3000 N | Up to 800 – 1800 | Ø220 mm | Ø215 mm (150 × 150 mm) |
