Pneumatic Machines
Reliable & Precise
EPIC pneumatic machines are rugged, durable, cost-effective, and efficient systems designed for user-friendly operation, long service life, and minimal maintenance.
Features & Advantages
Fully pneumatic operation for high reliability and low maintenance.
Small Footprint design with Eco-friendly operation & very low energy consumption.
High-speed printing with sharp, repeatable print quality.
Low ink consumption — printing starts from as little as 15 g (60 mm cup).
Consistent pad pressure for superior ink transfer and image clarity.
Precision-machined components for excellent image registration.
Critical components sourced from Europe.

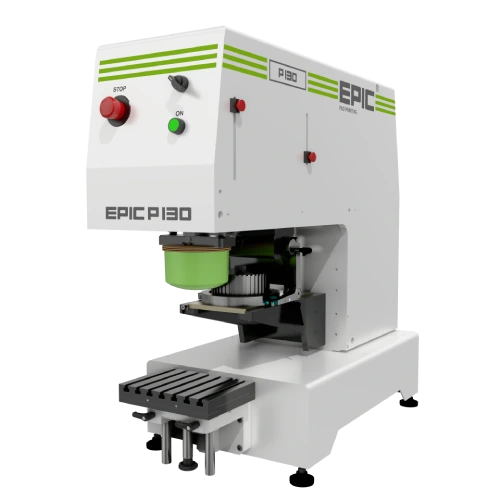

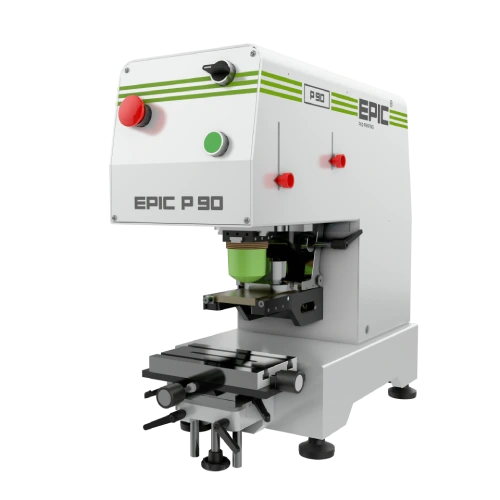

| Specification | P-60 | P-90 | P-130 |
|---|---|---|---|
| Pressure | 750 N | 1200 N | 3000 N |
| Cycles / Hour | Up to 2000 | Up to 1600 | Up to 1250 |
| Ink Cup Size | Ø60 mm | Ø90 mm | Ø130 mm |
| Max Print Image Size | Ø55 mm (38 × 38 mm) | Ø85 mm (60 × 60 mm) | Ø125 mm (88 × 88 mm) |
| Available Models | 2 / 3 / 4 / 6 Colours | 2 / 3 / 4 Colours | 2 Colours |
