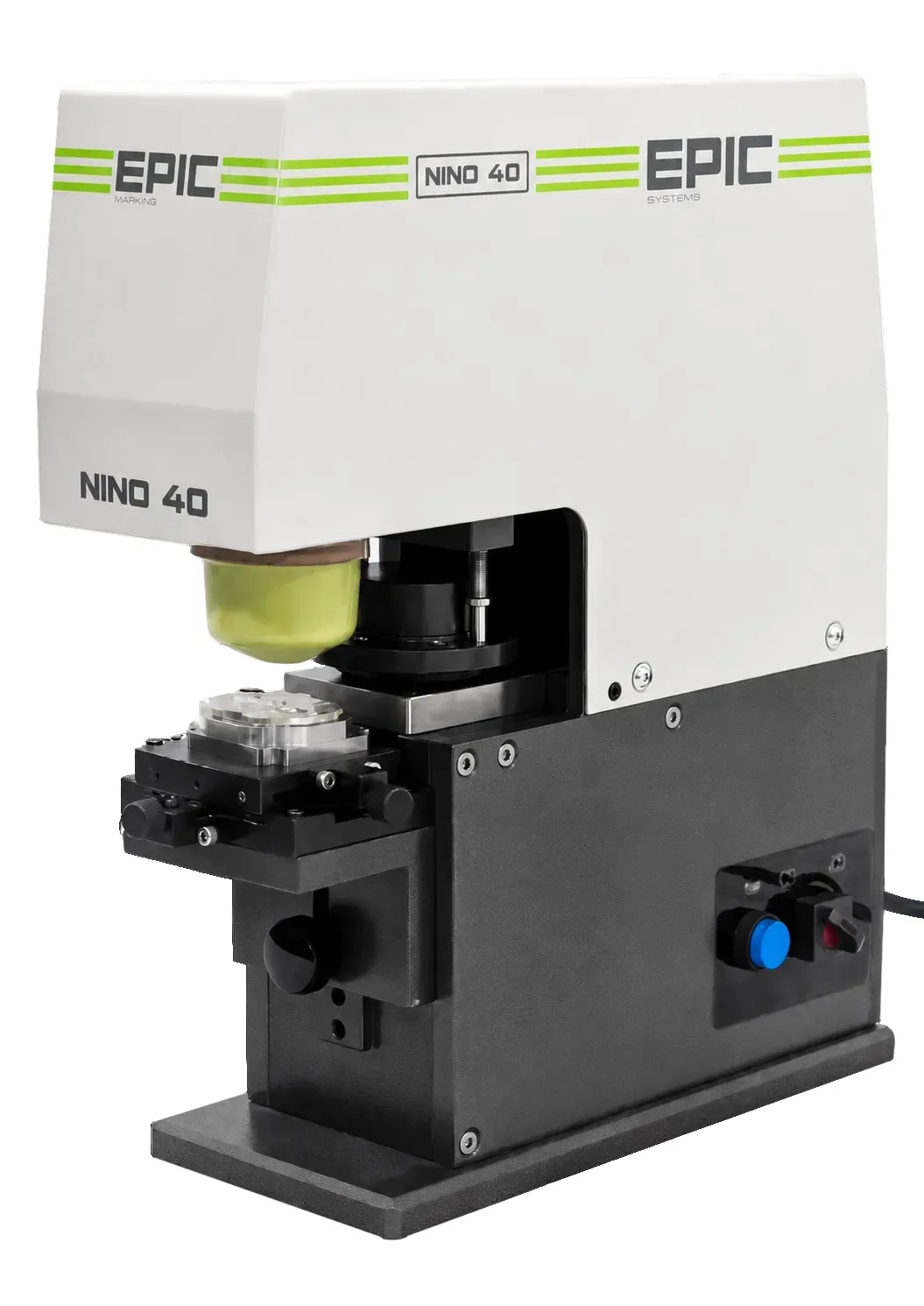

NINO 40 – World’s Smallest Pad Printing Machine
Precision Printing. Minimal Footprint. Maximum Performance.
Introducing the NINO 40 by EPIC Pad Printing Systems, the world’s smallest electro-mechanical pad printing machine engineered for ultra-precise industrial component decoration.
Designed for manufacturers who demand accuracy, portability, and reliability, the NINO 40 transforms micro-printing applications with an innovative air-free electro-mechanical system. Unlike conventional pad printing machines, NINO 40 requires no pneumatic setup, no bulky compressor, and no industrial infrastructure.
Powered entirely by a simple 12V DC supply, this compact powerhouse delivers consistent, high-fidelity prints for even the most demanding micro components.
Whether you are printing on watch dials, medical components, electronics, promotional items, or precision-engineered industrial parts, NINO 40 brings professional-grade pad printing directly to your workstation or tabletop.
Key Features of NINO 40
Ultra-Portable Design
Compact dimensions allow easy transportation and setup anywhere.
Plug & Play Operation
Runs on a standard 12V DC power supply with no compressed air requirement.
Electro-Mechanical Technology
Pure cam-driven operation ensures exceptional printing accuracy and reliability.
Low Maintenance System
Minimal moving components reduce downtime and maintenance costs.
Consistent Print Quality
Delivers repeatable, high-precision prints for micro-scale applications.
Space-Saving Footprint
Ideal for laboratories, small production facilities, and desktop manufacturing environments.
Applications of NINO 40 Pad Printing Machine
Watch dial printing
Medical device printing
Electronics component marking
Micro-industrial part decoration
Precision branding applications
Laboratory and R&D printing
Promotional product printing
Small component printing
Technical Specifications
|
Specification
|
Details
|
|
|---|---|---|
|
Ink / Doctoring Cup
|
Ø 40 mm
|
|
|
Cliché Size
|
50 × 100 × 10 mm
|
|
|
Maximum Print Image Size
|
Ø 35 mm
|
|
|
Pad Stroke onto Cliché
|
Variable: 20 – 38 mm
|
|
|
Pad Stroke onto Workpiece
|
Variable: 20 – 38 mm
|
|
|
Maximum Pad Installation Height from Cliché Plate
|
60 mm
|
|
|
Pressure Force
|
170 N
|
|
|
Drive System
|
Cam Driven
|
|
|
Power Supply
|
12V DC
|
|
|
Length
|
256 mm
|
|
|
Width
|
100 mm
|
|
|
Height
|
304 mm
|
|
|
Weight
|
8 kg
|
|
FAQs
Ques 1 : What makes the NINO 40 different from traditional pad printing machines?
Answer: The NINO 40 operates entirely on electro-mechanical principles and does not require compressed air or pneumatic systems, making it more compact, portable, and maintenance-friendly.
Ques 2 : Is the NINO 40 suitable for micro-printing applications?
Answer: Yes. NINO 40 is specifically designed for high-precision micro-printing applications such as watch dials, electronics, and medical devices.
Ques 3 : Does the machine require an air compressor?
Answer: No. The NINO 40 runs on a 12V DC power supply and does not require pneumatic air.
Ques 4 : What is the maximum print size?
Answer: The maximum print image size is Ø 35 mm.
Ques 5 : Can the NINO 40 be used in laboratories or small workshops?
Answer: Absolutely. Its compact footprint and plug-and-play design make it ideal for labs, R&D centers, tabletop production, and small manufacturing units.
Ques 6 : What industries commonly use the NINO 40?
Answer: Industries include medical devices, electronics, precision engineering, watch manufacturing, industrial component printing, and promotional product decoration.
Ques 7 : Is the machine portable?
Answer: Yes. The NINO 40 is ultra-portable and compact enough to fit inside a standard travel suitcase.
Ques 8 : What type of drive system does the machine use?
Answer: The machine uses a highly precise cam-driven electro-mechanical drive system for accurate print registration.
NINO SAMPLES
