Automation Solutions for MCB, MCCB, RCCB & Toggle Printing and Marking
At The electrical and switchgear industry is evolving rapidly with increasing demand for precision manufacturing, traceability, faster production cycles, and zero-defect quality standards. Products like MCBs, MCCBs, RCCBs, ELCBs, RCDs, and toggle switches require highly accurate printing and permanent marking solutions that can operate reliably in high-volume manufacturing environments.
To meet these evolving industrial demands, EPIC Automation and Spinks World deliver advanced automation systems specially engineered for switchgear printing, laser marking, inspection, and assembly applications.
From hybrid laser marking systems to fully automatic toggle printing SPMs, our solutions are designed to optimize productivity, reduce manual intervention, improve traceability, and ensure consistent print quality across every production cycle.
Growing Demand for Precision Manufacturing:

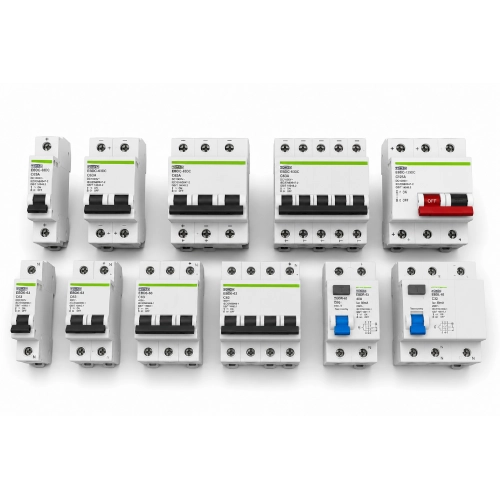

- ●Miniature Circuit Breakers (MCB)
- ●Molded Case Circuit Breakers (MCCB)
- ●Residual Current Circuit Breakers (RCCB)
- ●Earth Leakage Circuit Breakers (ELCB)
- ●Residual Current Devices (RCD)
- ●Electrical Toggle Switches require precise identification printing, branding, rating information, QR code traceability, and highly durable markings.
As production volumes increase, manufacturers face growing pressure to maintain:
- Faster throughput
- Accurate component identification
- Regulatory compliance
- Zero-defect manufacturing
- Real-time traceability
- Reduced labor dependency
Traditional manual printing and marking methods often struggle to meet these requirements consistently.
Printing & Marking Challenges in MCB and Toggle Manufacturing
Challenges Faced by Manufacturers:
- Inconsistent Print Quality - Manual printing processes often result in misalignment, uneven ink transfer, print variations, and high component rejection rates.
- Complex Product Variants - Manufacturers producing multiple MCB configurations such as 1 Pole, 2 Pole, 3 Pole, and 4 Pole face frequent changeovers that increase downtime and reduce production efficiency.

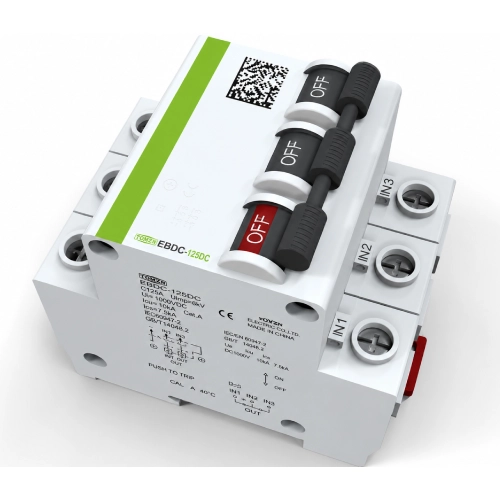

- Traceability Requirements - Modern switchgear manufacturing demands QR code marking, 2D data matrix coding, permanent laser marking, and database-driven identification, which manual processes cannot reliably achieve with accurate traceability.

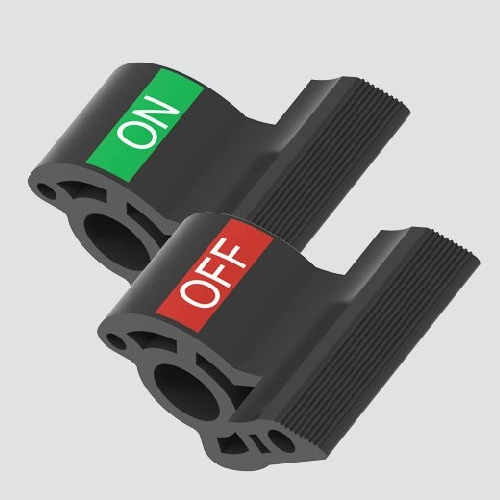

- High-Speed Production Demands - Toggle switch manufacturing requires precise ON/OFF printing, double-sided decoration, consistent orientation, and high repeatability, which manual operations struggle to achieve at scale.
- Inspection & Rejection Management - Defective prints and incorrect markings must be automatically identified and segregated to maintain production quality standards.
EPIC Automation Solutions for MCB, MCCB, RCCB & Toggle Printing
Complete Automation Solutions for Switchgear Manufacturing
EPIC Automation offers fully customized automation systems designed specifically for
electrical and switchgear manufacturing applications.
Applications Covered
- MCB Printing Automation
- MCCB Laser Marking Systems
- RCCB Pad Printing Machines
- ELCB Component Marking
- RCD Toggle Printing
- Electrical Switchgear Identification Printing
- Double-Sided Toggle Printing
- QR Code & 2D Data Matrix Laser Marking
- Component Inspection & Rejection Handling
These systems help manufacturers improve:
Productivity
Traceability
Print consistency
Production efficiency
Fully Automatic Toggle Printing Solutions
High-Speed Toggle Printing Automation
Spinks World specializes in fully automatic toggle switch printing systems developed specifically for the electrical industry.
- Accurate ON/OFF markings
- Two-sided printing
- High-speed automation
- Minimal operator dependency
Auto Flip Toggle Printing Mechanism
The intelligent automated flip mechanism performs:
- Accurate ON/OFF markings
- Two-sided printing
- High-speed automation
- Minimal operator dependency
This enables seamless double-sided printing in a fully automated process.
Integrated IR Curing System
The built-in IR curing system provides:
- Faster ink drying
- Reduced cycle time
- Immediate handling capability
- Improved production throughput
Automatic Tape Cleaning System
Automatic tape cleaning ensures:
- Consistent print quality
- Reduced manual intervention
- Lower downtime
- Improved production reliability
Pads are cleaned automatically between cycles for stable print performance.
Bowl Feeder Auto Feeding System
The intelligent bowl feeder system:
- Automatically aligns toggle switches
- Maintains continuous feeding
- Reduces manual handling
- Improves production efficiency
Dual Track Linear Indexing System
The dual-track indexing configuration enables:
- Parallel processing
- Higher productivity
- Better material flow
- Improved cycle efficiency
This setup is ideal for high-volume toggle printing applications.
Vision Inspection System for Quality Assurance
Smart Camera-Based Inspection
Integrated vision inspection systems ensure:
- Print quality verification
- Tolerance inspection
- Accurate component alignment
- Automatic defect detection
Defective parts are automatically rejected while approved components continue through the production line.
- Product consistency
- Manufacturing quality
- Production reliability
This significantly improves:
Common Fixtures for Multiple Toggle Variants
Eliminate Changeover Delays
Specially designed universal fixtures support multiple toggle variants without requiring extensive setup modifications.
Benefits include:
- Faster product changeovers
- Reduced setup time
- Greater manufacturing flexibility
- Increased operational efficiency
Why Choose EPIC Automation & Spinks World?
EPIC Pad Printing is the Pad printing automation division of Spinks World a group with 35+ years of industrial printing and machine-building. Where others supply machines, EPIC delivers validated process solutions like inks, machines, and curing system engineered together, backed by decades of cross-industry manufacturing and printing knowledge on Complex Product Variants.
Made-in-India Automation Excellence
Our systems combine:
- Advanced engineering
- Precision manufacturing
- Industry-specific customization
- Long-term reliability
Advantages of Our Automation Solutions
- High-speed production capability ideally printing 60-80parts/ minute
- Superior print consistency
- Permanent laser marking traceability
- Reduced labor dependency
- Smart inspection systems
- Seamless production integration
- Low maintenance design
- Enhanced operator safety
Industries Served
Our automation solutions are widely used in:
- Electrical switchgear manufacturing
- Circuit breaker production
- Electronics manufacturing
- Industrial component printing
- Smart electrical device assembly
Transform Your Switchgear Manufacturing with Smart Automation
Enhance productivity, improve print quality, and streamline switchgear manufacturing with advanced automation solutions from EPIC Automation and Spinks World.
From hybrid laser marking systems to fully automatic toggle printing machines, we deliver complete turnkey automation solutions engineered for the future of electrical manufacturing.
Contact UsGet in touch for customized solutions in:
- MCB Printing Automation
- MCCB Laser Marking
- Toggle Printing Machines
- Laser Marking Integration
- Pad Printing Automation
- Special Purpose Machines (SPMs)
Speed depends on many factors like auto loading and unloading, automated inspection and rejection for Zero-defect manufacturing , component geometry, print complexity, and line configuration.
Ask our expertsManual vs Pad Printing Automation-Direct Comparison for toggle printing
| Parameter | Manual process | Full automation (Spinks World) |
|---|---|---|
| Print consistency | Variable — operator dependent | 100% repeatable, every cycle |
| Throughput | 800–1,200 pcs/hr | 4,000–8,000+ pcs/hr (fully unattended) |
| Double-sided toggle printing | Manual flip, high error rate | Automated flip mechanism, zero operator input |
| Laser traceability (QR / 2D) | Not possible | Integrated inline, database-connected |
| Vision inspection | Visual check only, ~60–70% catch rate | 100% inline camera inspection, auto rejection |
| Multi-variant changeover (1P–4P) | 45–90 min, manual re-jigging | < 5 min — universal fixture + recipe recall |
| Ink-machine process match | Unvalidated, trial and error | Ink + machine + curing validated together by Spinks Automations. |
| Operator dependency | 3–5 operators per shift | 1 operator oversees multiple machines |
| BIS / IEC compliance readiness | Manual records only | Full digital audit trail per component |
| Rejection rate (typical) | 3–8% | < 0.3% |
| Process ownership & support | None-multiple vendors | End-to-end-ink, machine, curing & support from one single point. |
Automation Solutions for MCB, MCCB, RCCB & Toggle Printing and Marking
FAQs
Ques 1 : How does automation improve switchgear manufacturing efficiency?
Answer: Automation minimizes manual handling, reduces errors, improves consistency, and increases production speed, leading to higher manufacturing efficiency.
Ques 2 : What are the benefits of laser marking in MCB and MCCB production?
Answer: Laser marking provides permanent, highly accurate, and traceable identification that improves compliance and product traceability.
Ques 3 : Can the system handle multiple MCB variants?
Answer: Yes. Universal jigs and fixtures support 1P, 2P, 3P, and 4P MCB variants with minimal changeover time.
Ques 4 : How does the rejection management system work?
Answer: Integrated inspection systems automatically identify defective parts and segregate them from approved components.
Ques 5 : Why is vision inspection important in toggle printing?
Answer: Vision inspection ensures print accuracy, alignment verification, and consistent product quality during high-speed production.
