EPIC EP-60: Unveiling the Compact Power house

EPIC EP-60

Unveiling the Compact Powerhouse

The EP-60 stands out as a standard machine offered by EPIC. With its compact size and impressive features, the EP-60 is the perfect choice for printing areas with limited space. This machine excels in delivering crisp and accurate printing results, making it a reliable tool for various printing applications. The EP-60 pad printing machine from EPIC is a remarkable innovation that combines efficiency with a small footprint. With a 55mm diameter, this compact machine proves to be an excellent choice. Despite its small size, the EP-60 boasts exceptional features that ensure precise and high-quality printing output.

EPIC-60 |High Precision Printing |Printing on plastics |Printing on metals|Best Pad printers |Best Pad printing machines

Key Features of the EP-60

The EP-60 pad printing machine comes packed with several impressive features, enhancing its performance and versatility. Let's take a closer look at some of its key features:

1

High Precision Printing

The EP-60 utilizes advanced printing technology to ensure accurate and precise printing results. This allows for intricate designs and fine details to be reproduced with clarity.

2

User-Friendly Interface

With a user-friendly interface, the EP-60 is designed to simplify operation and increase efficiency. Its intuitive controls enable users to set up printing jobs quickly and easily.

3

Fast Setup and Changeover

The machine's quick setup and changeover capabilities contribute to improved productivity. With minimal downtime between printing tasks, businesses can optimize their workflow and meet tight deadlines.

4

Versatile Printing Options

The EP-60 offers versatility in printing options, accommodating various substrates and applications. Whether it's printing on plastics, metals, or other materials, this machine delivers consistent results across different surfaces.

5

Efficient Ink Usage

EPIC has engineered the EP-60 to optimize ink usage, reducing wastage and overall printing costs. The machine ensures precise ink transfer, resulting in efficient and economical printing operations.

Applications and Industries

The EP-60 pad printing machine finds application in a wide range of industries and printing requirements. Its versatility and reliability make it an ideal choice for businesses in need of efficient and accurate printing solutions. Let's explore some of the industries where the EP-60 excels:

Other models

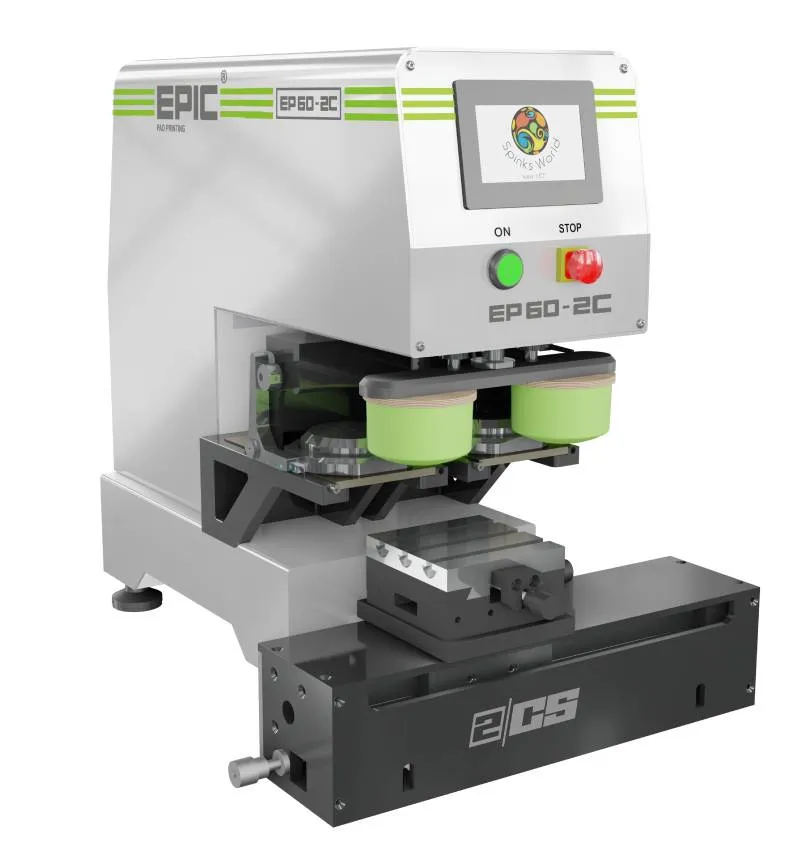

EPIC-60-2C | 2 color machine

2 color machine

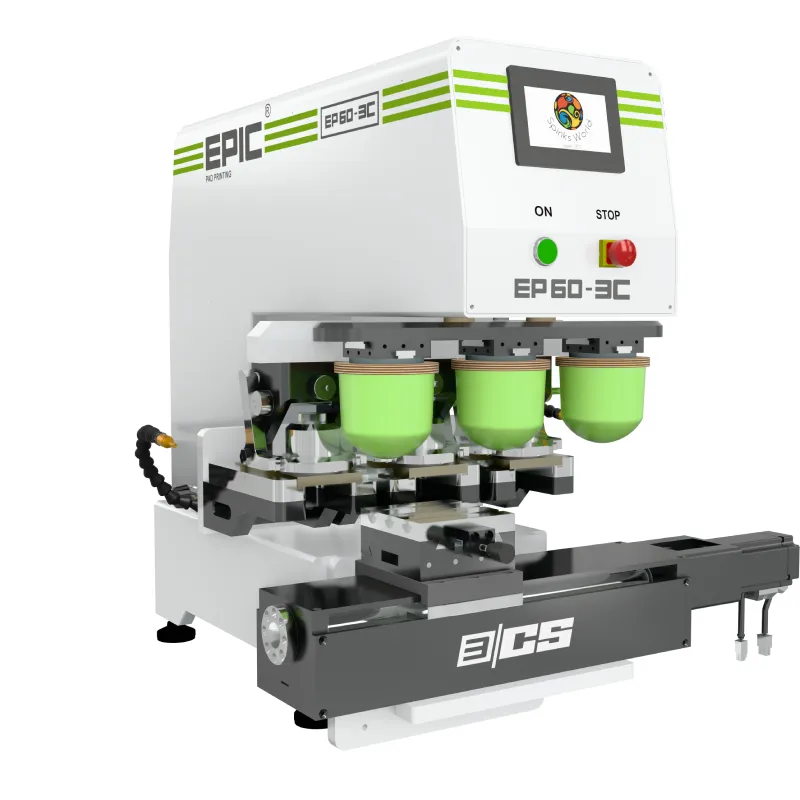

EPIC-60-3C | 3 color machine

3 color machine

EP-60-4C | 4 color machine |Pad printing machine fro automotive

4 color machine

EPIC-60-6CS |6color machine |Pad printing machine for toys

6 color machine

Special Models

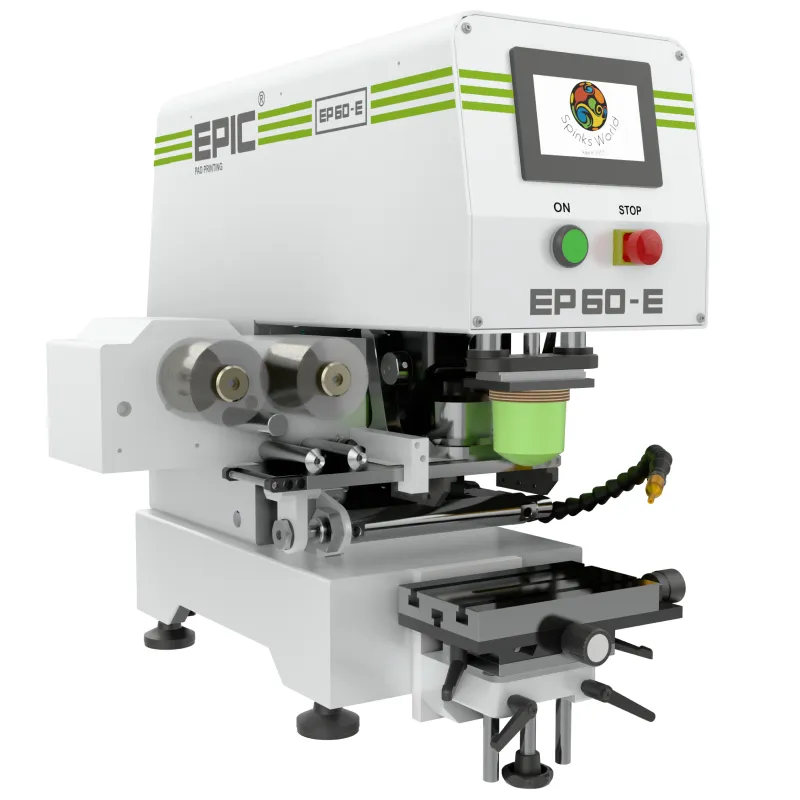

EP-60E |Pad printing machine

EP-60E Tape cleaning machine

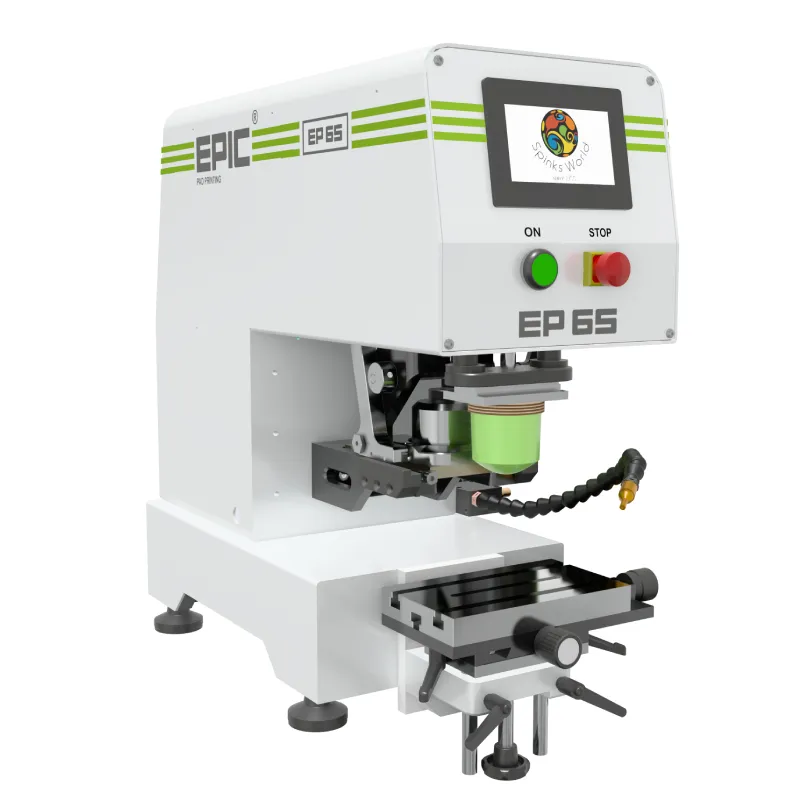

EP-65 |EPIC Pad printing machine

EPIC EP-65

Technical Details

Technical Features
Units
EP-60
Part no.
160 000
Ink doctoring cup
Φ mm
60
65*
Cliché size
mm
70x140
Print image size max.
mm
Φ 55 (38 x 38)
60*
Single cycle
Yes
Multiple printing double/triple
Yes (Programable)
Continuous run
Yes
Cycle counter
Yes
Number of cycles (in continuous single run)
cycles/h
Up to 2000
Pad stroke onto cliché
mm
20-50
Pad stroke onto work piece, variably adjustable
mm
20-80
Pad installation height max.
mm
66
Force of pressure
N
750
Variable speed control
Yes
Precise X-Y-Z-R table
Yes
Noise emission
dB (A)
75-85
Length
mm
600
Height
mm
535
Width
mm
250
Weight* (net/gross)
kgs
50/60
Drive
Electro-pneumatic
Control
PLC
User interface HMI
4"
Connected load
KW
0.2
Prefuse
6A
Power supply (special voltage on request)
230 V 1/N/PE
Power frequency
Hz
50-60
Control voltage
V/DC
24
Air consumption/cycle
NL
3
Pneumatic supply with fine filter 5 um
Bar
6
Tape cleaning system (TCS)
Optional
Indexing module
Optional
DIY Stand (Do it Yourself)
Optional
Air shower
Optional
Global Language HMI - Default English
27 languages

FAQs

Ques 1 : What is the printing area of the EP-60 pad printing machine?

Answer: The EP-60 pad printing machine features a 55 mm printing area, making it ideal for small components and precision printing applications. It delivers sharp, high-quality prints even on compact surfaces, ensuring accuracy and consistency.

Ques 2 : Can the EP-60 pad printing machine print on different materials?

Answer: Yes, the EP-60 pad printing machine supports multi-material printing, including plastics, metals, glass, and coated surfaces. This makes it suitable for industries such as automotive, electronics, promotional products, and packaging.

Ques 3 : Does the EP-60 pad printing machine require extensive setup time?

Answer: No, the EP-60 pad printing machine is designed for quick setup and fast changeovers, minimizing downtime and improving overall production efficiency.

Ques 4 : How does the EP-60 pad printing machine optimize ink usage?

Answer: EPIC has engineered the EP-60 pad printing machine to optimize ink usage by ensuring precise ink transfer. This reduces wastage and overall printing costs, making it an economical choice for businesses.

Ques 5 : Can the EP-60 pad printing machine print intricate designs and fine details?

Answer: Yes, the EP-60 pad printing machine is built for high-precision printing, enabling it to reproduce fine details, small text, and complex designs with clarity, even on curved or uneven surfaces.

EP-60 SAMPLES

pad-printing-on-car-metal-toys |Pad printing on car toy |pad printing machine for toy |Car toy printing |EPIC Pad printing machine |pad printing on car |automotive pad printing |car logo pad printing |pad printing on toy cars |car body pad printing |high precision pad printing on curved car surfaces |pad printing machine for car toy |durable ink printing for car components |multi-color pad printing on car bodies |EPIC EP-60  EP-60  EP-60

EPIC PRINTING DEMONSTRATION

Have an upto 55 mm Part to Print?

Share your part, artwork, or drawing. We evaluate feasibility, recommend the right configuration , and demonstrate achievable print quality- ensuring the EP-60 fits your exact production requirements.

Speak to Our Experts

Disclaimer : The images of machines and printed samples displayed on this webpage are intended for illustrative purposes only. They may not accurately represent the exact specifications, colors, textures, or sizes of the actual products.
